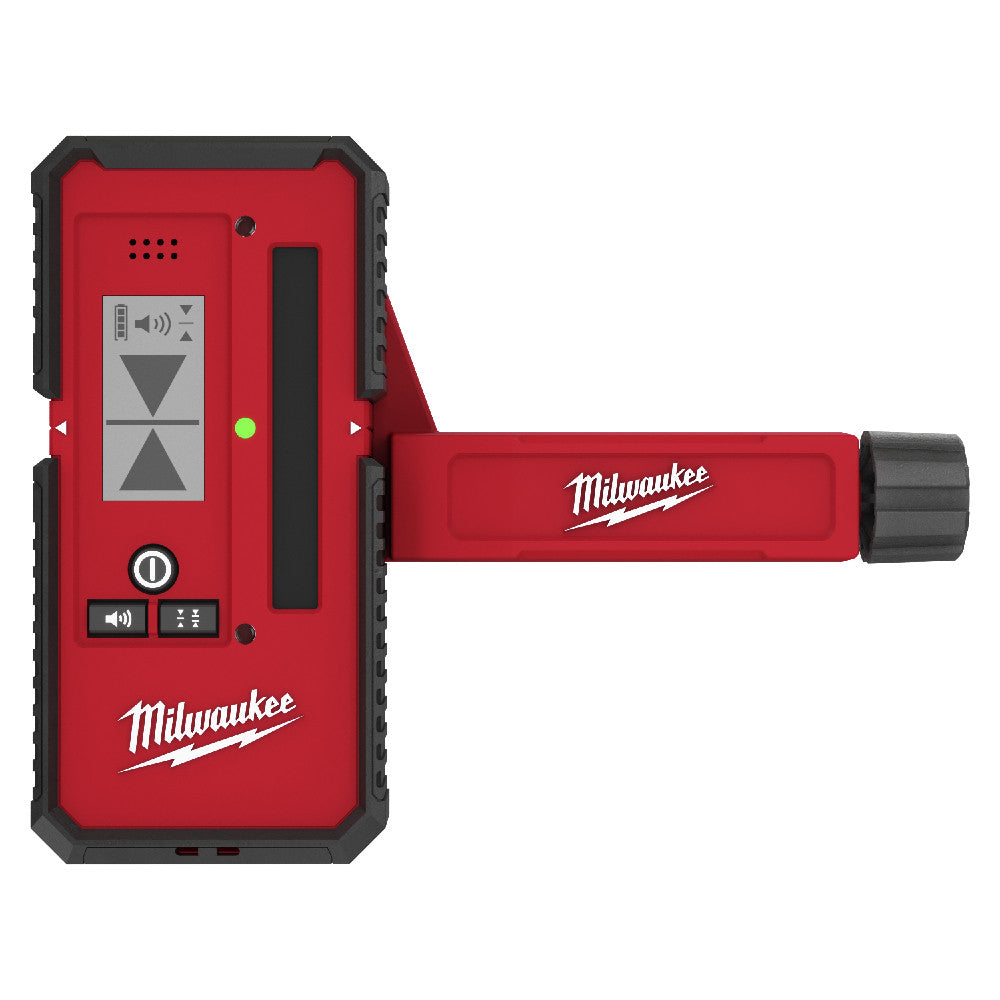

Enhance layout precision with the 165-Foot Laser Line Detector, designed to extend laser range up to 165 feet for quick and accurate point-to-point alignment. Ideal for professional construction and installation projects, this detector improves laser visibility and performance over longer distances.
Bright LED indicators on both the front and rear provide clear directional feedback, streamlining the setup process in various lighting conditions. Adjustable sound levels and selectable accuracy modes allow users to fine-tune detection settings for greater control and exact alignment results.

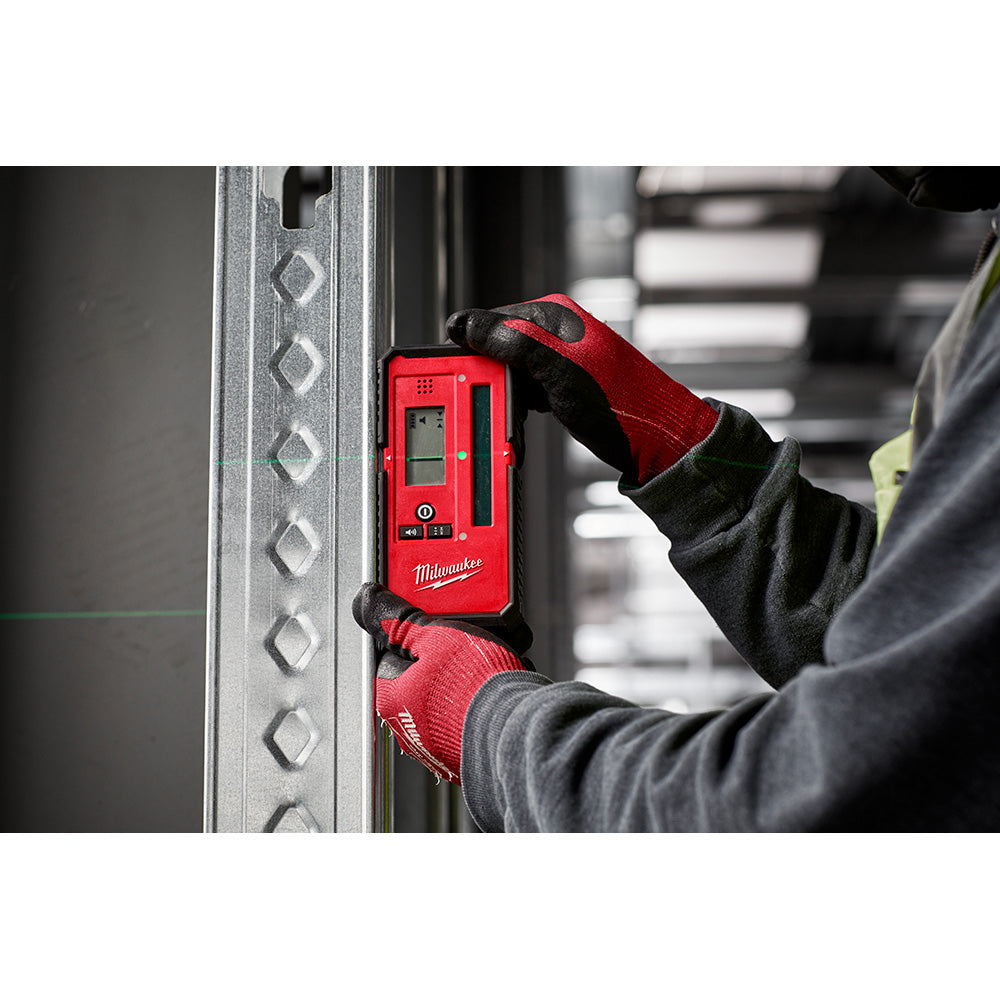

Built with rare earth magnets on dual sides, the detector easily mounts to metal surfaces, while the included material clamp simplifies elevation adjustments. Engineered for demanding jobsite's environments, it offers 1-meter drop resistance and an IP54 rating for protection against dust and water. With over 65 hours of runtime, this laser detector ensures dependable, all-day operation and is fully compatible with Milwaukee line and plane laser systems.

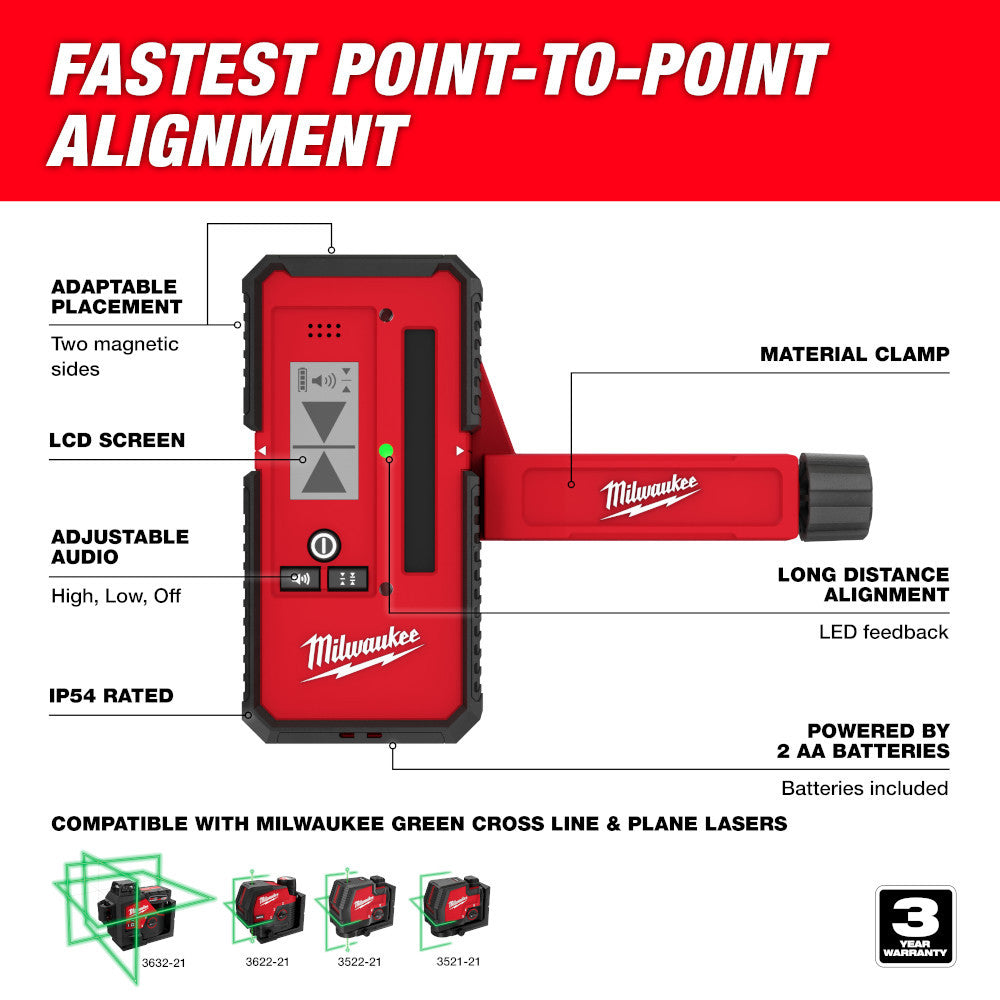

Key Features:
- For use with Milwaukee Cross Line and Plane Lasers (3521-21, 3522-21, 3622-21, 3632-21)
- Fast Point-to-Point alignment
- Long-distance alignment with LED feedback on front and back
- Adaptable placement with two magnetic sides to easily attach to metal surfaces

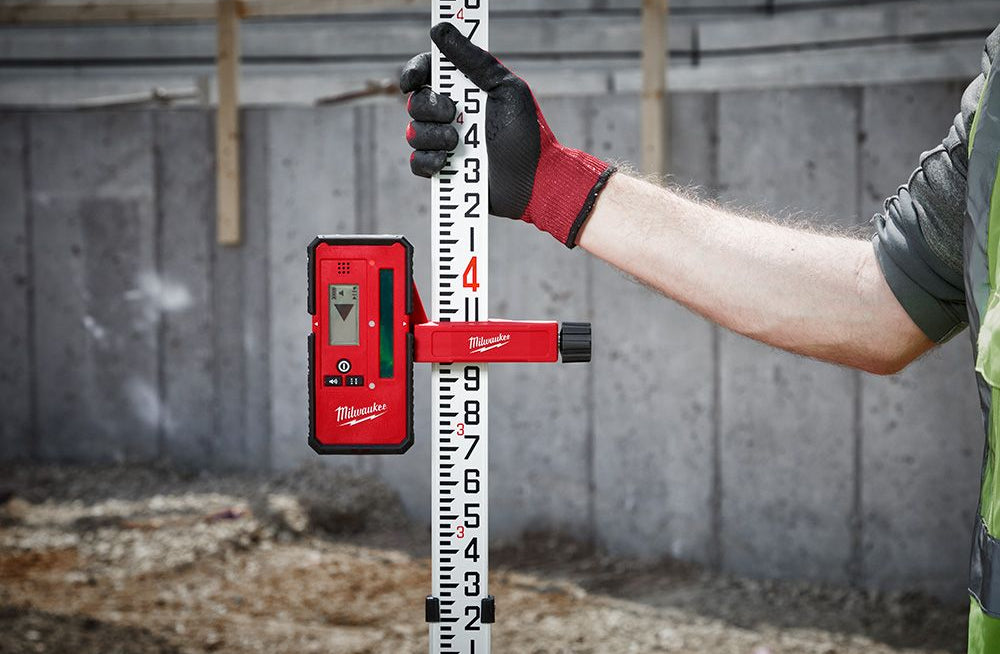

- Material clamp for setting elevation
- Adjustable Audio: High, Low, Off
- IP54 Rating: water and dust resistant
- 1m Impact resistance
- Fine & Coarse accuracy settings
- Reception Angle: ±40°
- Measuring Accuracy Fine: ±0.03in @ 33'
- Measuring Accuracy Course: ±0.04in @ 33'
- Wavelength Compatibility: 510 to 530 nm
- Storage Temperature: -4°F to 140°F
- Working Range: 15' up to 165' (dependent on laser source)
- Includes 2 AA Batteries

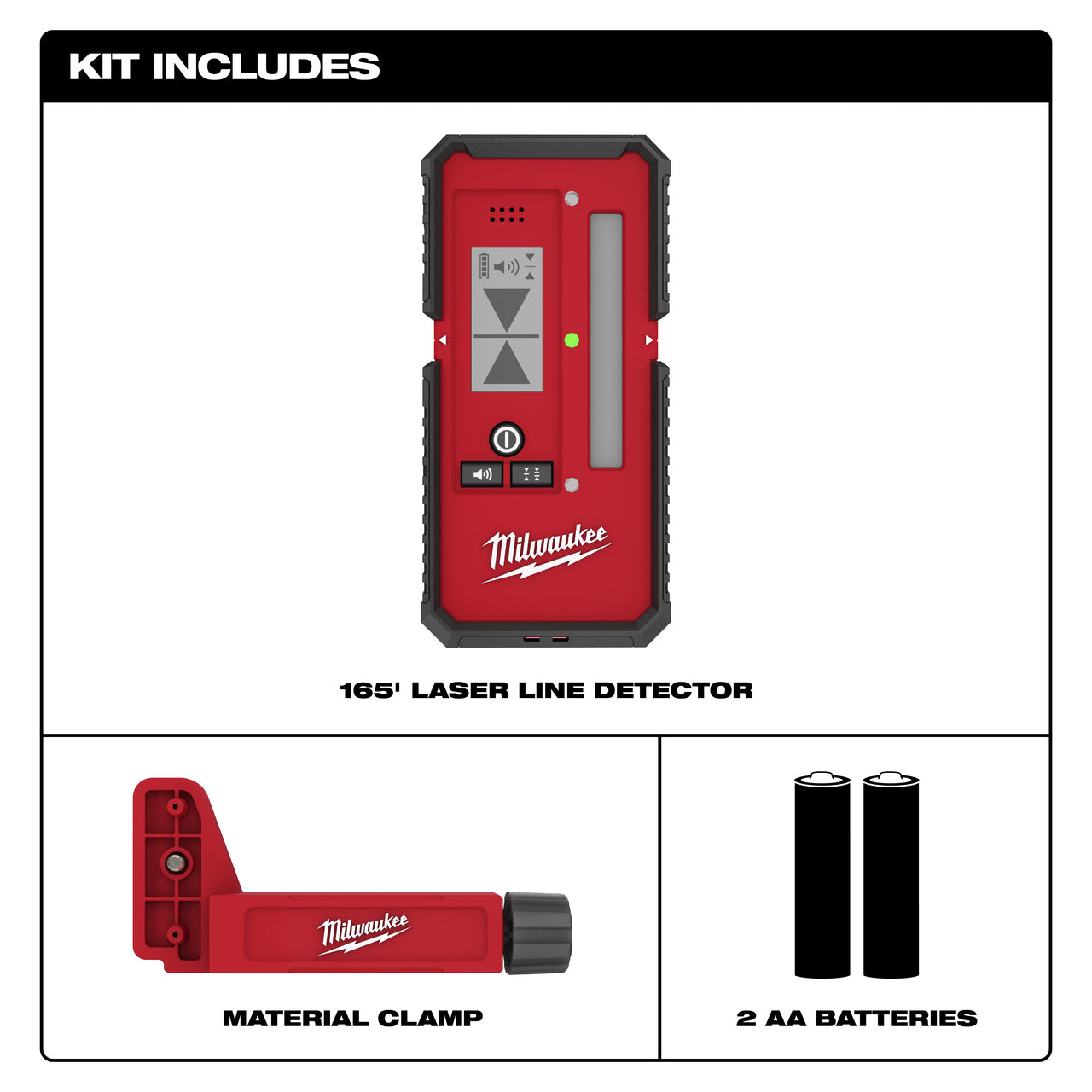

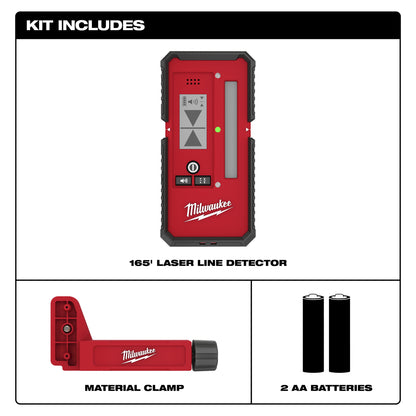

What's Included:
- 1 x 165-Foot Laser Line Detector
- 1 x Material Clamp
- User Manual
-
Batteries (as provided by manufacturer)
Warranty Information:
- Milwaukee’s warranty and service details can be easily reviewed on the Milwaukee General Warranty Information page.
Specifications:
| Specifications | Details |
|---|---|
| Product Type | Laser Line Detector |
| Maximum Detection Range | Up to 165 ft |
| Display Indicators | Front & Rear LED Indicators |
| Audio Settings | Adjustable Volume Levels |
| Accuracy Modes | Selectable Precision Settings |
| Mounting Options | Dual-Sided Rare Earth Magnets & Material Clamp |
| Impact Resistance | 1 Meter Drop Protection |
| Ingress Protection Rating | IP54 (Dust & Water Resistant) |
| Runtime | Over 65 Hours |
| Compatibility | Compatible with Line & Plane Lasers |
