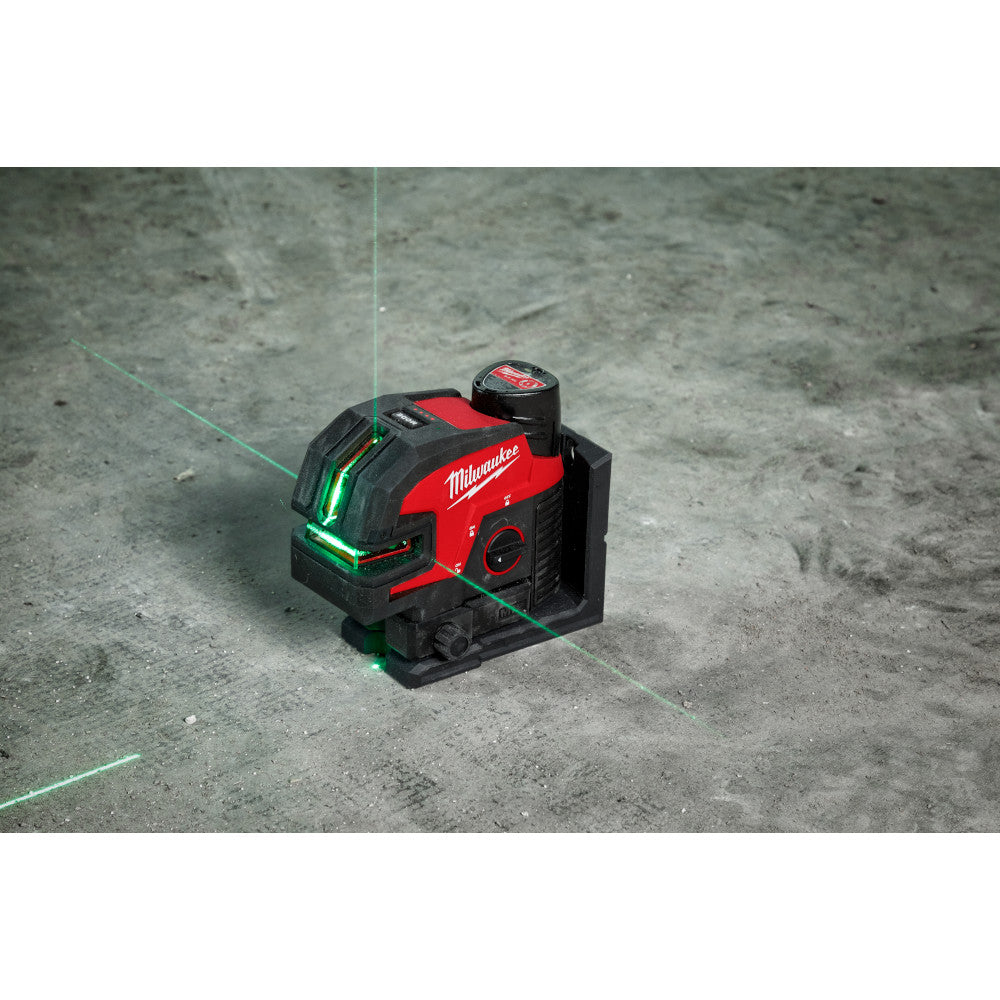

Milwaukee 3624-20 M12 Green Cross Line and 4-Points Laser (Tool Only)

Description

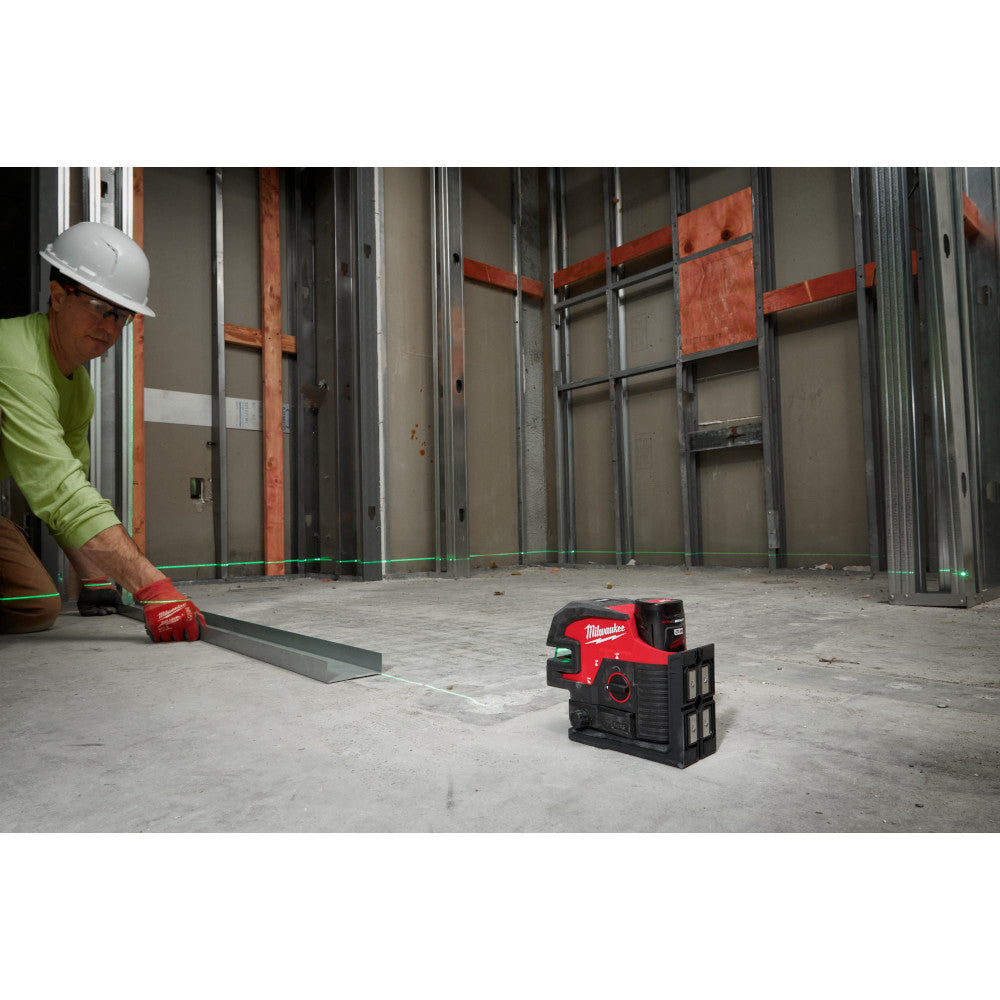

Achieve precise layout, leveling, and alignment with this cordless M12 Green Cross Line & 4-Point Laser, built for accuracy and efficiency on professional job sites. The high-visibility green beam delivers clear performance at distances up to 125 feet, with accuracy rated at ±1/8 in at 33 feet—ideal for long-range leveling and layout tasks.

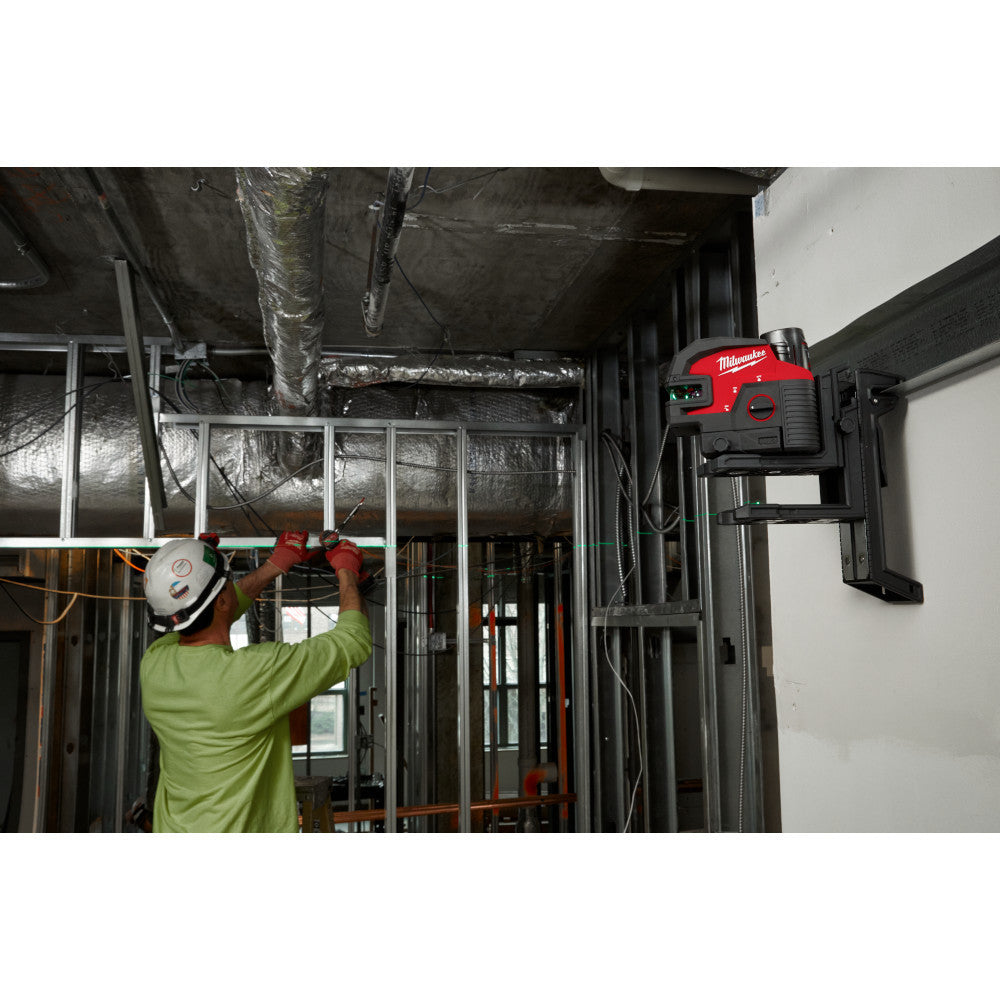

Featuring bright horizontal and vertical cross lines, this laser simplifies leveling and alignment, while the additional four-point layout enables fast floor-to-ceiling transfers and accurate squaring applications. An integrated magnetic mounting bracket with fine micro-adjustment pivots on the plumb point, allowing quick setup and precise alignment.

Powerful rare-earth magnets provide a secure hold on metal surfaces, and the built-in hang hole supports flexible mounting in various work environments. As part of the Milwaukee M12™ System, this laser is compatible with all M12 batteries and delivers up to approximately 9 hours of continuous runtime when used with an M12 REDLITHIUM™ 3.0 CP battery (sold separately), helping maximize productivity throughout the workday.

Key Features:

• All Day Runtime: 9Plus/Minus-Hours with M12 CP3.0 Battery Pack (sold separately)
• Brightest Green Laser Optimized for Distance

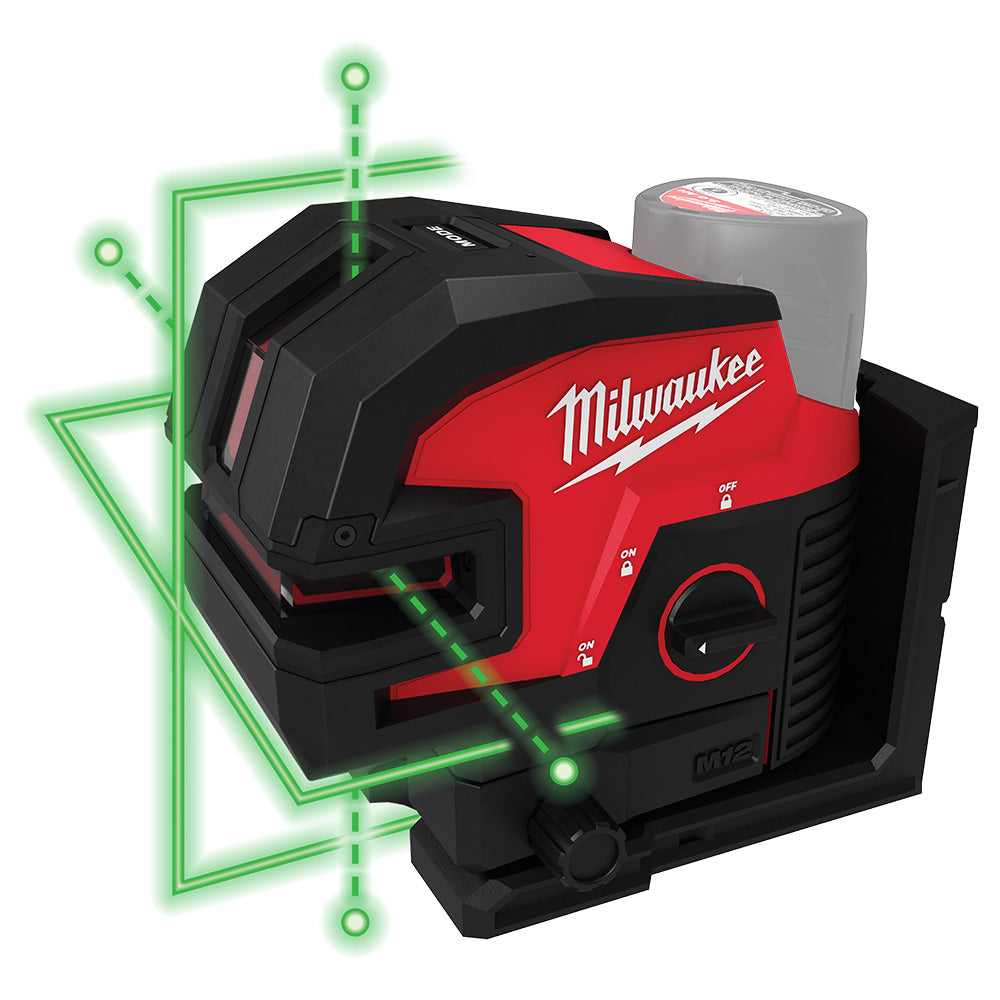

• 4-Points to level, align, plumb and square
• 125' working range and accuracy of Plus/Minus 1/8in @ 33 ft
• 2in Plumb Point Access gives tool clearance
• 165' Range with detector
• Integrated magnetic bracket provides fast alignment and micro control to deliver faster, easier point-to-point alignment
• Amplified Rare Earth Magnets prevent sliding on steel studs
• IP54 rated to withstand wet and dusty work environments
• 1 meter Impact Resistance protects against drops
• Self-Leveling: Plus/Minus 4° Tilt
• 1/4-20 and 5/8-11 Thread Mount
• Micro Control: Pivots on Point
• Vertical & horizontal lines

What's Included:

• 3624-20 M12 Green Cross Line and 4-Points Laser (Tool Only)

Warranty Information:

• Milwaukee’s warranty and service details can be easily reviewed on the Milwaukee General Warranty Information page.
