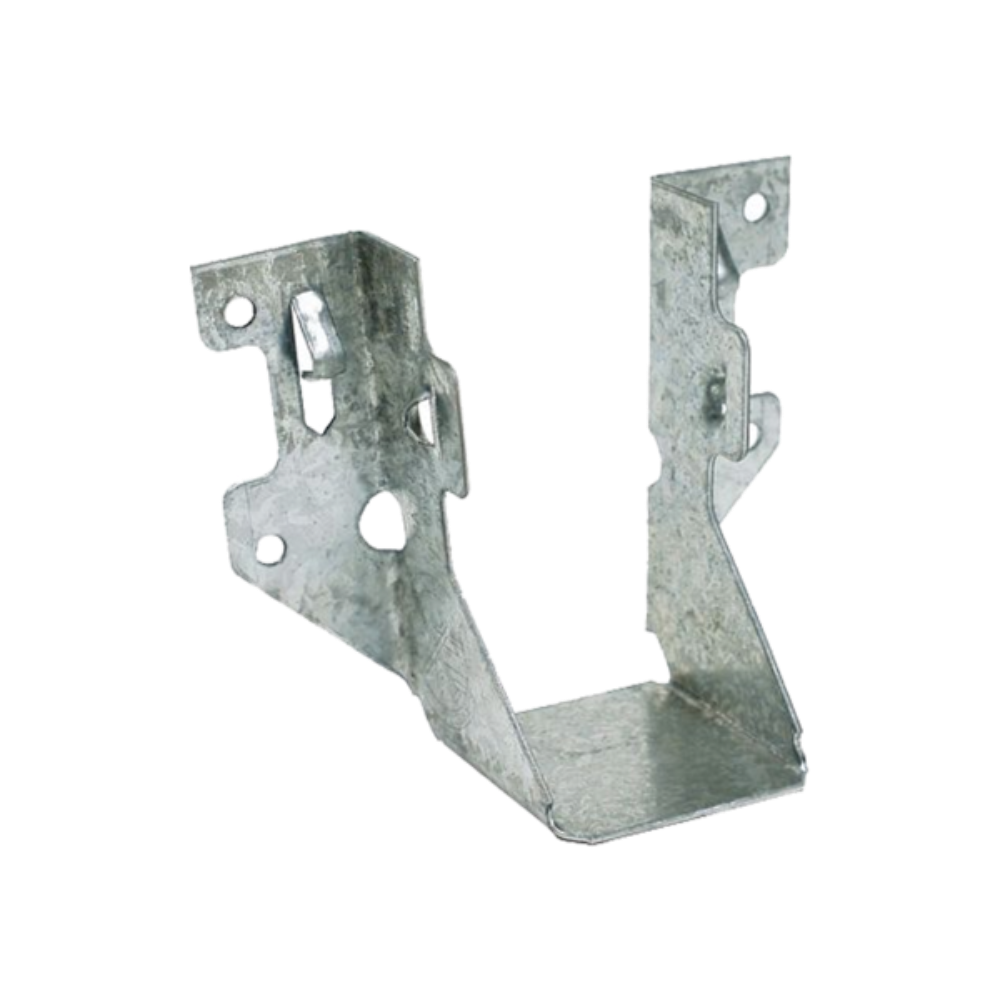

LUS24Z SIMPSON STRONG-TIE 2" x 4" ZMAX LUS Series Joist Hanger

Description

LUS24Z SIMPSON STRONG-TIE LUS Series Light-Capacity Joist Hanger is designed to connect nominal 2" x 4" lumber to wood headers, beams, or ledgers. Its patented double-shear nailing design transfers load through two points on each joist nail, providing an efficient connection while allowing fewer nails.

The hanger is made from 18-gauge steel and features a ZMAX galvanized coating for enhanced corrosion resistance in exterior and treated-wood applications. Speed prongs help temporarily position and secure the hanger during installation, while angled joist nailing makes installation easier where access is limited.

Key Features:

• Designed for nominal 2" x 4" lumber
• LUS Series light-capacity face-mount joist hanger
• 18-gauge steel construction
• ZMAX galvanized coating
• Double-shear nailing design
• Speed prongs for easier positioning
• Angled joist nailing for tight spaces
• 1-9/16" width
• 3-1/8" height
• 1-3/4" seat depth


What's Included:

• 1 × SIMPSON STRONG-TIE LUS24Z 2" x 4" ZMAX LUS Series Joist Hanger
