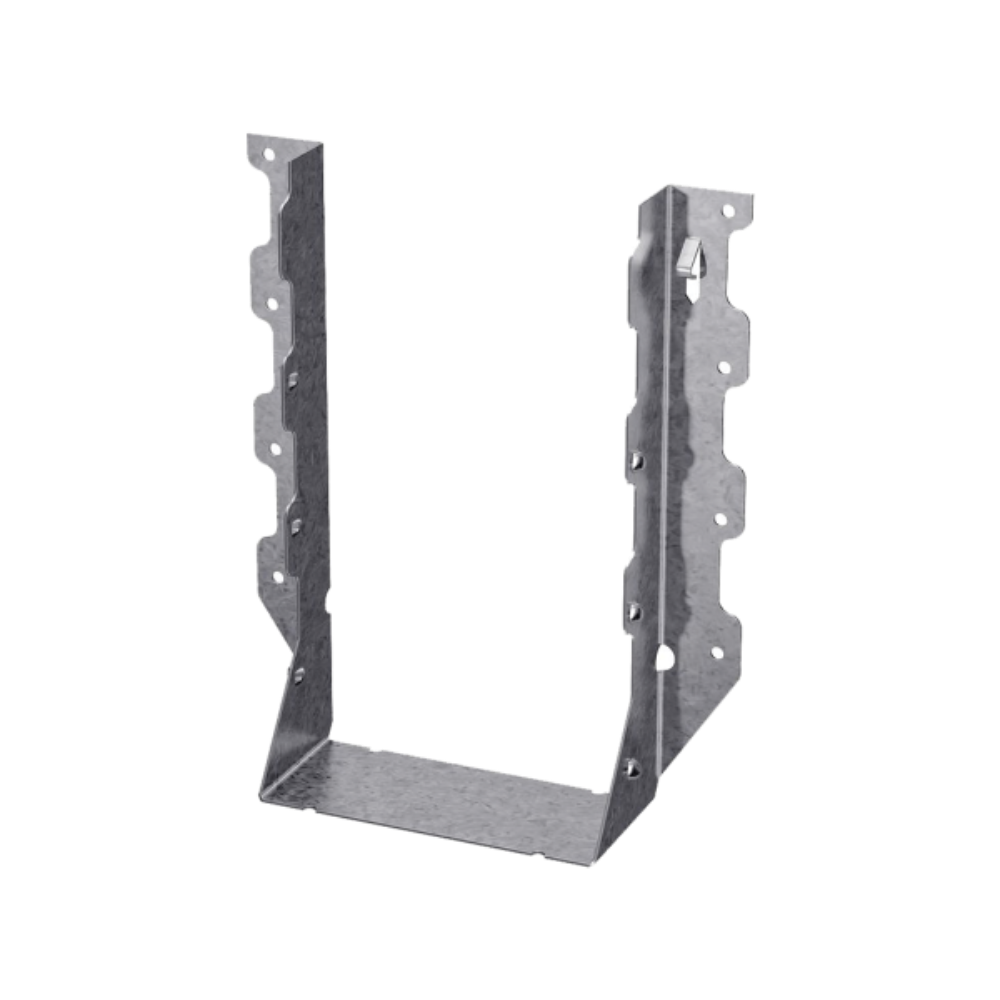

LUS210-3Z SIMPSON STRONG-TIE 2" x 10" ZMAX LUS Series Triple Joist Hanger

Description

LUS210-3Z SIMPSON STRONG-TIE LUS Series ZMAX Joist Hanger is designed for face-mount connections supporting triple 2" x 10" dimensional lumber. Its double-shear nailing design distributes load through two points on each joist nail, helping provide an efficient wood-to-wood connection. The hanger is made from 18-gauge steel with a ZMAX galvanized coating for enhanced corrosion resistance.

The hanger includes speed prongs for temporary positioning and angled joist nailing for easier access in tight spaces. It has a 4-5/8" width, 6-1/4" height and 2" base depth according to the Can-Cell product listing.

Key Features:

• Designed for triple 2" x 10" lumber
• LUS Series face-mount joist hanger
• 18-gauge steel construction
• ZMAX galvanized coating
• Double-shear nailing design
• Speed prongs for fast positioning
• Angled joist nailing for easier installation
• 4-5/8" width
• 6-1/4" height
• 2" base depth


What's Included:

• 1 × SIMPSON STRONG-TIE LUS210-3Z 2" x 10" ZMAX Triple Joist Hanger

Specifications:
