Leo Tools Ltd.

LEO Type III Angle Iron Barricade Kit

LEO Type III Angle Iron Barricade Kit

3904-EG-L-DRILL-KIT

$249.92 CAD
$249.92 CAD
Sale Sold out

Low stock: 5 left

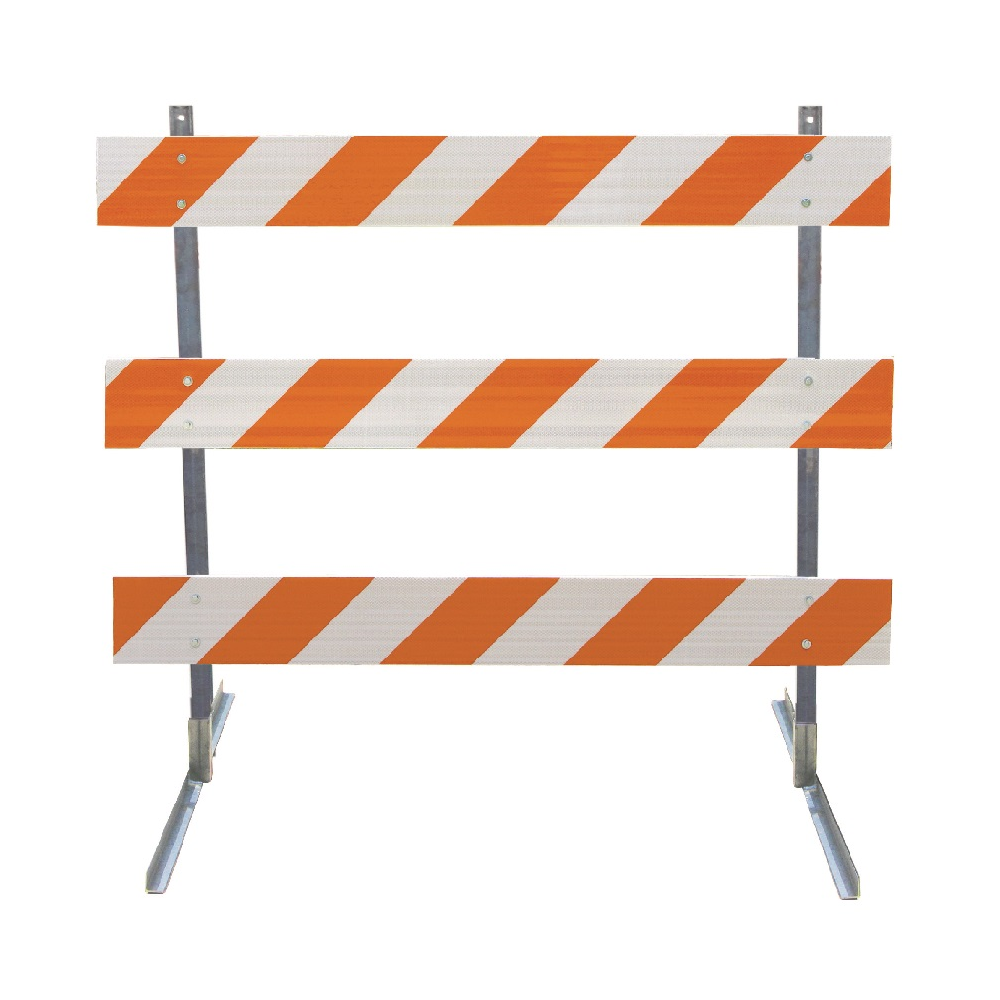

The Type III Angle Iron Barricade Kit is a reliable, all-in-one solution for traffic control and construction site safety. This 4' barricade kit includes 3 plastic boards, uprights, feet, and all the necessary hardware for quick and easy assembly.

Key features include pre-drilled uprights, allowing you to easily install optional flashing barricade lights for enhanced visibility in low-light conditions. Ideal for roadwork, construction zones, or event management, this kit ensures a fast and efficient setup with durable performance.

Key Features:

  • Galvanized Steel Uprights & Feet: 10 gauge galvanized steel for maximum strength.
  • Plastic Boards: 2.54cm x 20.32cm (1" x 8") with Engineer Grade (EG) reflective sheeting for high visibility.
  • Panel Length: Three 1.22m (4') long panels with left striped sheeting on one side.
  • Board Design: Includes ribs to increase stiffness, reducing bending, cracking, and warping.
  • Flashing Lights: Accepts 2 flashing barricade lights (sold separately).
  • Compliance: NCHRP-350 Accepted, and meets MUTCD standards.

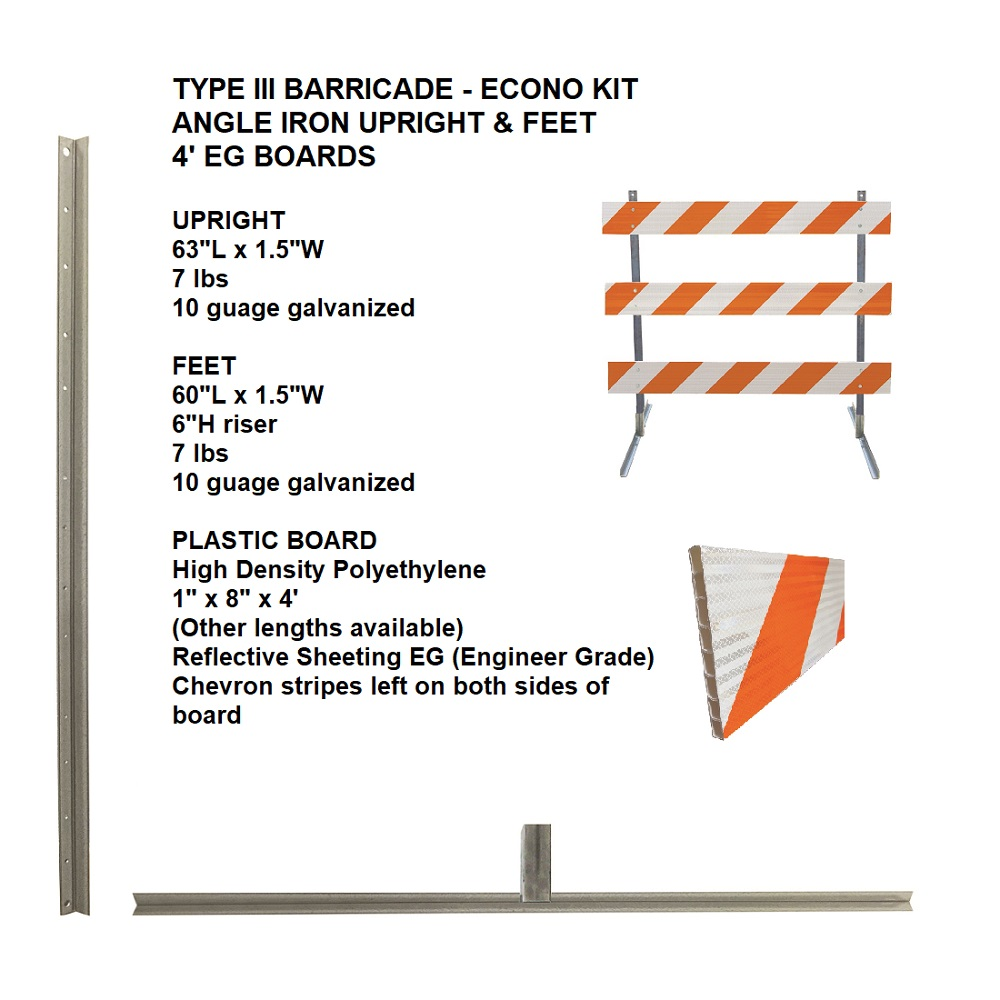

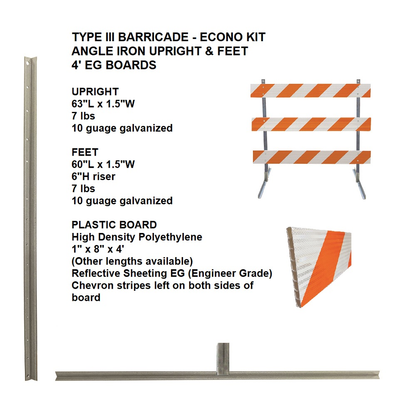

Specifications:

Details Specifications
Assembled Size 1.22m W x 1.52m H (4′ W x 5′ H)
Weight 17.24kg (38 lbs.)
Boards Material High impact blow molded plastic
Board Size 2.54cm x 20.32cm x 1.21m L (1″ x 8″ x 4′ L)
Panel Sheeting EG (Engineer Grade) reflective tape, striping Left in orange and white
Uprights & Feet Material 10 gauge galvanized steel
Upright Dimensions 3.81cm x 3.81cm x 160.02cm (1.5″ x 1.5″ x 63″)
Feet Dimensions 3.81cm x 3.81cm x 152.4cm (1.5″ x 1.5″ x 60″), Riser 15.24cm (6″)
Mounting Holes Pre-drilled universal holes, 0.87cm (11/32″) dia. Top of upright 1.43cm (9/16″) dia for optional lights
Flashing Barricade Lights Accepts 2 flashing barricade lights (sold separately)
Compliance NCHRP-350 Accepted, Meets MUTCD Standards
Standard Package 1 kit (0.91m x 1.22m (3′ x 4′) long plastic boards, 2 x uprights, 2 x feet, 12 x bolts, 12 x nuts, 24 x washers)
Pallet Quantity 40 kits
Item Number 3904-EG-L-DRILL-KIT
