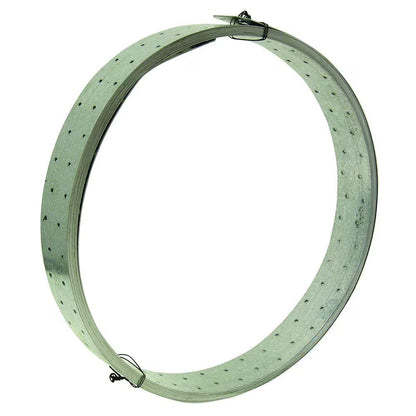

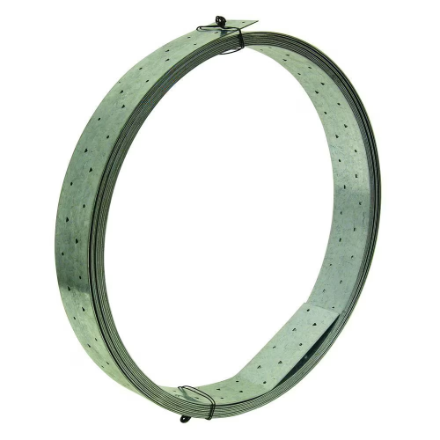

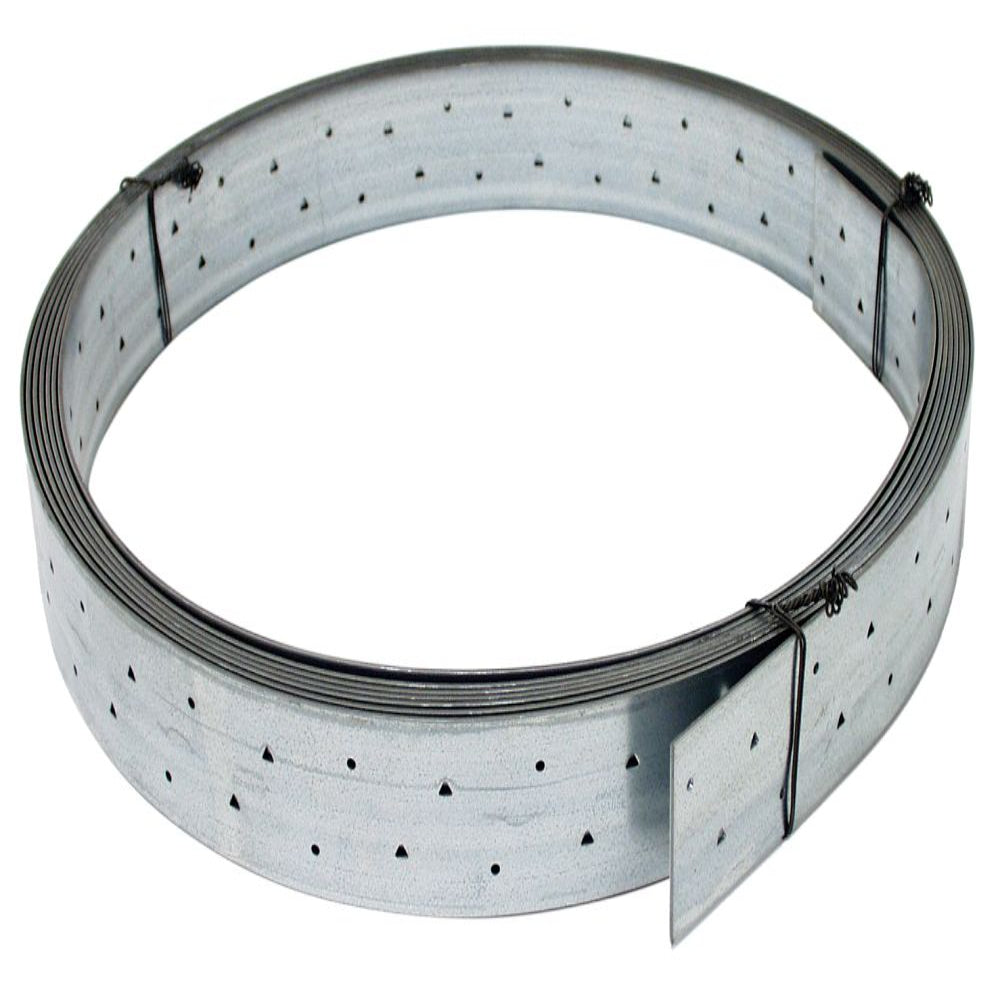

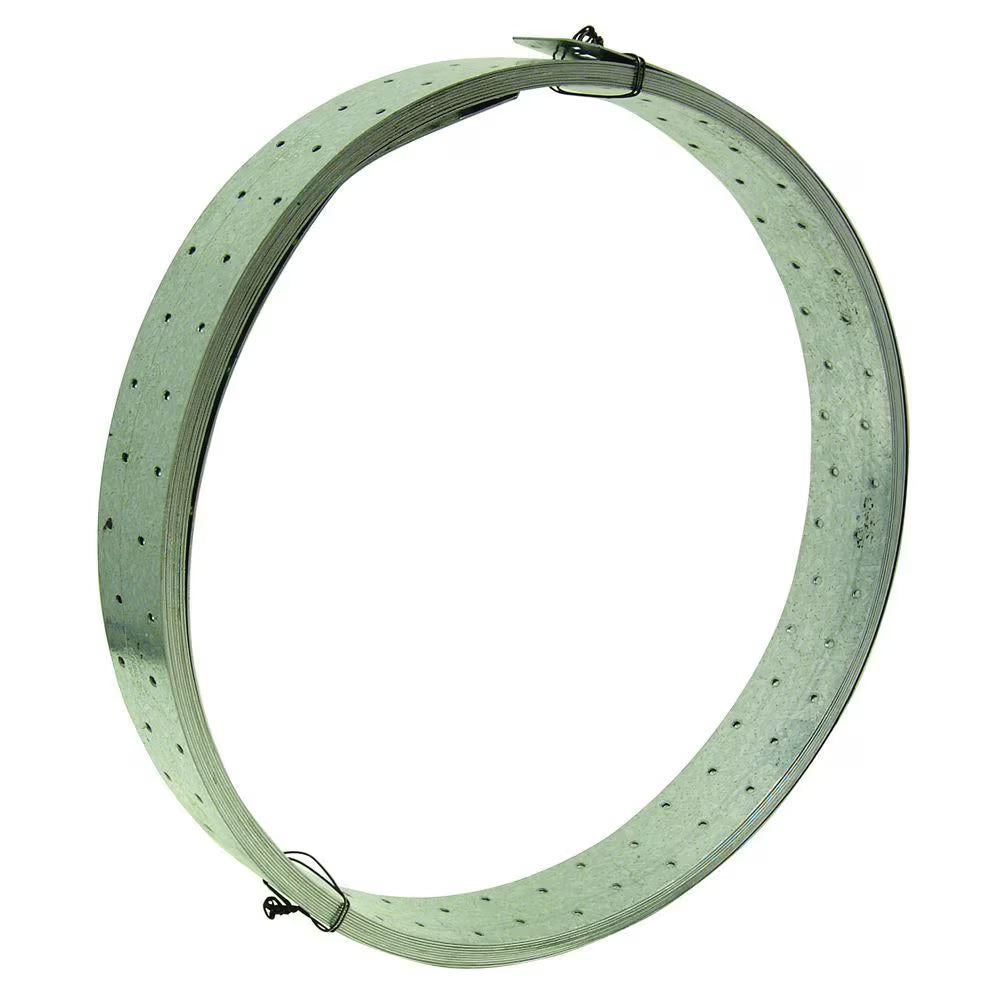

CMST Coiled Medium Strap Tie – Durable Reusable Cable & Wire Fastening Strap
CMST Coiled Medium Strap Tie – Durable Reusable Cable & Wire Fastening Strap
SKU:CMST12
97 in stock
Couldn't load pickup availability
Description
The CMST Coiled Medium Strap Tie is a continuous utility strap designed to provide reliable resistance against tension, uplift, and structural loads in various construction applications. This flexible coiled strap can be cut to the required length directly on-site, making it a versatile and cost-effective solution for floor-to-floor, roof uplift, and shear wall overturning resistance.Ideal for use in double 2x stud and post applications, the CMST strap delivers strong fastening performance while reducing installation time compared to traditional pre-cut straps. The CMSTC option features countersunk nail slots for a lower-profile installation when used with 0.148" x 3 1/4" sinkers.
Key Features:
- Continuous coiled strap design for flexible jobsite applications
- Provides resistance against uplift and tension forces
- Ideal for roof uplift and shear wall overturning applications

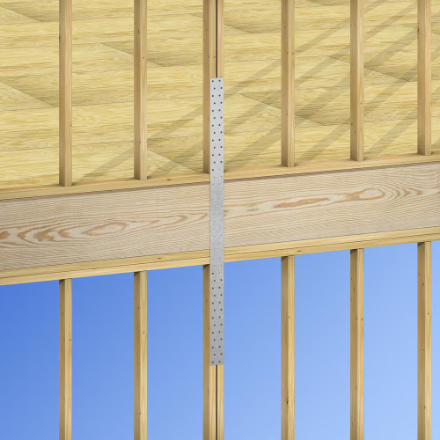

- Suitable for floor-to-floor structural connections
- Can be cut to custom lengths as required
- Cost-effective alternative to pre-cut structural straps
- CMSTC option available with countersunk nail slots for low-profile installation
What's Included:
- 1 × CMST Coiled Medium Strap Tie
- Installation-ready continuous strap coil
- Product packaging and manufacturer documentation (if provided)
Specifications:
| Specifications | Details |
|---|---|
| Product Type | CMST Coiled Medium Strap Tie |
| Application | Structural reinforcement for roof uplift, shearwall overturning resistance, and floor-to-floor connections |
| Design | Continuous coiled utility strap that can be cut to required length on-site |
| Material | See manufacturer specification table |
| Finish | Galvanized (G90) |
| CMSTC Option | Available with countersunk nail slots for a lower-profile installation when used with 0.148" x 3 1/4" sinkers |
| Load Resistance | Designed to resist tension forces, uplift loads, and structural movement |
| Installation | Use all specified fasteners according to installation guidelines and applicable code requirements |
| Fasteners | Refer to load tables for required nails and allowable loads |
| Strap Length | Cut length should equal twice the specified end length plus the clear span dimension |
| Hole Pattern | Round and triangle holes designed for specified fastening requirements |
| Splitting Prevention | Use only every other round hole if wood splitting may occur |
| Lap Splicing | Can be used to extend strap lengths for continuous drag elements and diaphragm chord members |
| Alternative Nailing | Allowable loads vary based on alternative nailing schedules; refer to manufacturer guidelines |

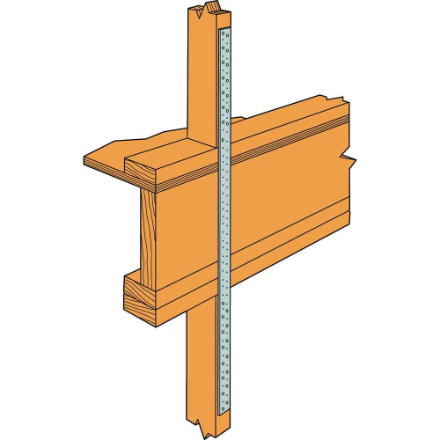

| Recommended Use | Double 2x stud or post applications, structural framing, and construction reinforcement |
| Benefits | Cost-effective alternative to pre-cut straps with flexible jobsite installation |
| Installation Notes | Wood shrinkage after installation across horizontal wood members may cause strap to buckle outward |
| Design Requirement | Engineer/Designer of Record must verify adequacy of lap splice and alternative nailing applications for design loads |
